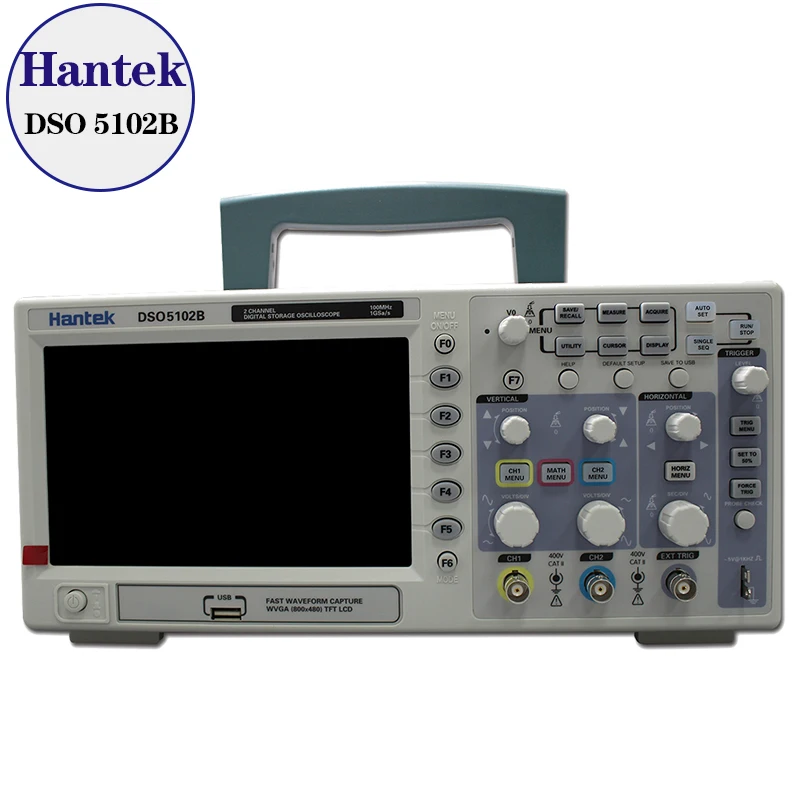

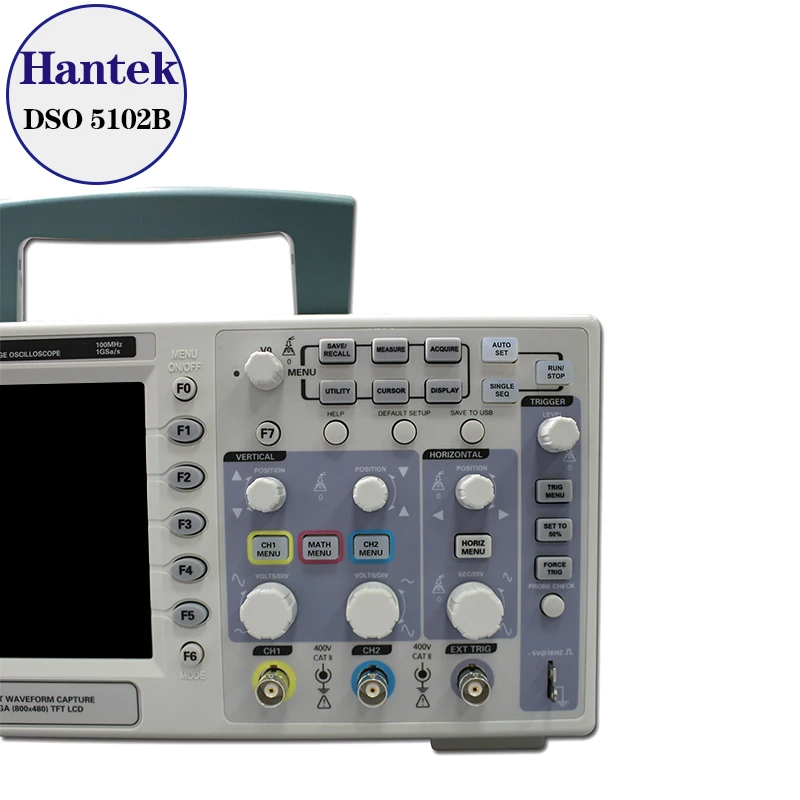

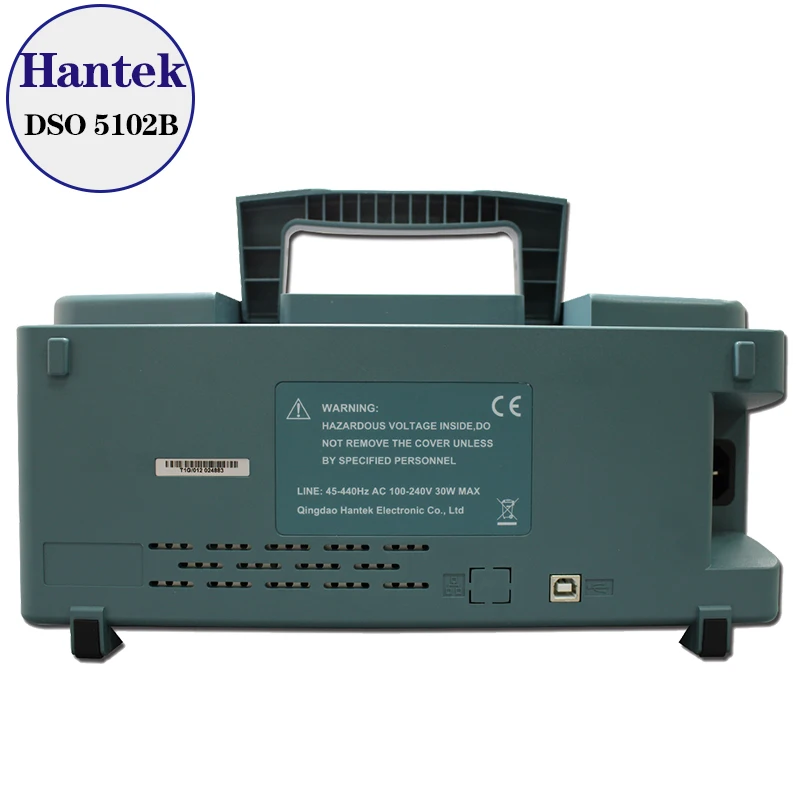

We will pack the Original box in another box, so when you get the package, all in good condition Features: • 200/100/60MHz bandwidths •1GSa/s Real Time sample rate • Large (7.0-inch) color display,WVGA(800x480) • Record length up to 1M • Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. • USB host and device connectivity, standard • Multiple automatic measurements • Four math functions, including FFTs standard • Provides software for PC real-time analysis Specifications: Model DSO5202B DSO5102B DSO5062B Bandwidth 200MHz 100MHz 60MHz Real-time Sample Rate 1GSa/s Equivalent Sample Rate 25GSa/s Record Length(Sample Points) Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional) SEC/DIV Range 4nS/div-40S/div (in a 2, 4, 8 sequence) Delay Time Accuracy 500ps Vertical A/D Converter 8-bit resolution, each channel sampled simultaneously VOLTS/DIV Range 2mV/div~5V/div at input BNC Position Range ±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div) Bandwidth Limit 20MHz Rise Time at BNC ≤1.7ns ≤3.5ns ≤5.8ns DC Gain Accuracy ±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div ±3% for Sample or Average acquisition mode, 5V/div to 10mV/div Trigger Trigger Sensitivity (Edge Trigger Type) DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full EXT(Typical) 200mV from DC to 40MHz EXT/5(Typical) 1V from DC to 40MHz AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity Trigger Level Range CH1,CH2: ±8 divisions from center of screen EXT: ±1.2V EXT/5: ±6V Trigger Level Accuracy, typical (Accuracy is for signals having rise and fall times ≥20ns) CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen) EXT: ±(6% of setting + 40mV) EXT/5: ±(6% of setting + 200mV) Holdoff Range 100ns-10s Trigger Type Edge Trigger on the rising or falling edge Pulse Width Trigger (when >,<,=,≠) on positive or negative pulses Pulse Width Range: 20ns-10s Video Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM) Slope Trigger (when >,<,=,≠) on a positive or negative slope Set Time: 20ns–10s Overtime from the rising or falling edge Set Time: 20-10s Alternate Internal trigger on edge, pulse width, video or slope Measurement Cursors Manual: The difference between voltage cursors V; the difference between time cursors T; 1/T calculated by Hz. Tracing: The voltage and time at a waveform point Automatic Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width Display Type Right angle 7"TFT 16-digit color LCD Resolution 800*480 dots Contrast 16 gears, with the progress bar to show adjustment Interface USB host and USB slave Power Supply Voltage 100-120VACRMS(±10%),45Hz to 440Hz,CAT II 120-240VACRMS(±10%),45Hz to 66Hz,CAT II Power <30W Fuse 2A, T rating, 250V Mechanical Size Length: 313mm Width: 108mm Height: 142mm Weight 2.08KG (exclusive of packing and accessories) Package content: 1 x 5102B Oscilloscope Host 2 x Connecting Lines 1 x USB Cable 1 x Installation CD 1 x Power line 1 x Original box
