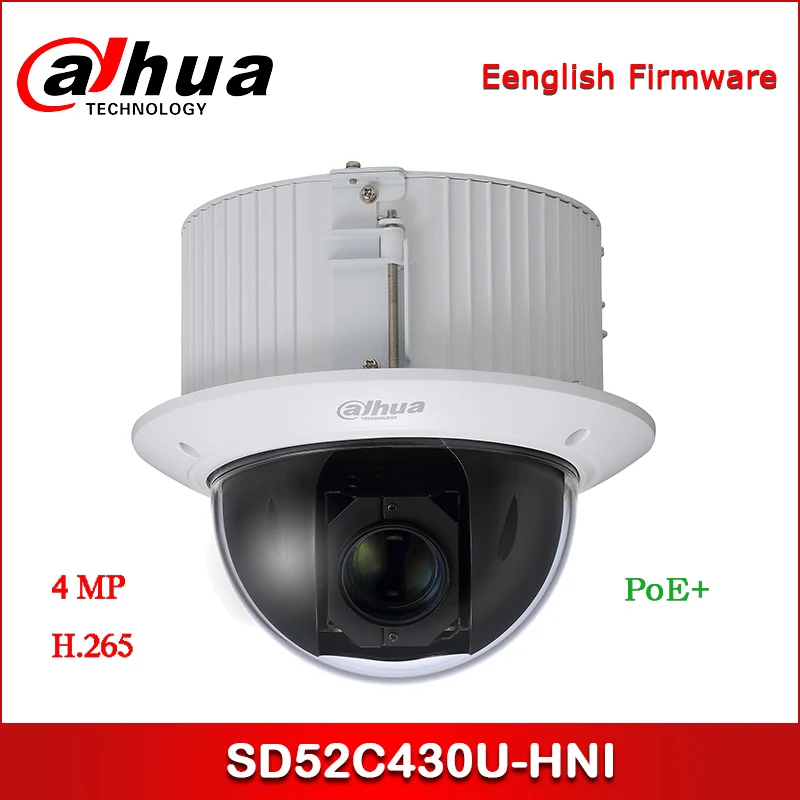

SD52C430U-HNI4MP 30x PTZ Network Camera> 1/3" 4Megapixel CMOS> Powerful 30x optical zoom> H.265 Encoding> Max. 25/30fps 4M/3M, 25/30/50/60fps 1080P> Auto-tracking and IVS> Support PoE+> IK10 Camera Image Sensor 1/3" CMOS Effective Pixels 2592(H) x 1520(V), 4 Megapixels RAM/ROM 1024M/128M Scanning System Progressive Electronic Shutter Speed 1/1s~1/30,000s Minimum Illumination Color: 0.05Lux F1.6; B/W: 0.005Lux F1.6 S/N Ratio More than 55dB IR Distance N/A IR On/Off Control N/A IR LEDs N/A Lens Focal Length 4.5mm~135mm Max. Aperture F1.6 ~ F4.4 Angle of View H: 60° ~ 2.2° Optical Zoom 30x Focus Control Auto/Manual Close Focus Distance 100mm~ 1000mm DORI Distance Note: The DORI distance is a "general proximity" of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Detect Observe Recognize Identify 2700m(8858ft) 1080m(3543ft) 540m(1772ft) 270m(886ft) PTZ Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180° Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s Preset Speed Pan: 500° /s; Tilt: 500° /s Presets 300 PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan Speed Setup Human-oriented focal Length/ speed adaptation Power up Action Auto restore to previous PTZ and lens status after power failure Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period Protocol DH-SD Intelligence Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly Auto Tracking Support IVS Tripwire, Intrusion, Abandoned/Missing Advanced Intelligent Functions Face Detection, Heat Map Video Compression H.265+/H.265/H.264+/H.264 Streaming Capability 3 Streams Resolution 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) Frame Rate Main stream:4M/3M(1~25/30fps), 1080P/1.3M/ 720P(1~50/60fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps) Bit Rate Control CBR/VBR Bit Rate H.265/H.264: 448K ~ 8192Kbps Day/Night Auto(ICR) / Color / B/W Backlight Compensation BLC / HLC / WDR (120dB) White Balance Auto, ATW, Indoor, Outdoor, Manual Gain Control Auto / Manual Noise Reduction Ultra DNR (2D/3D) Motion Detection Support Region of Interest Support Electronic Image Stabilization (EIS) Support Defog Support Digital Zoom 16x Flip 180° Privacy Masking Up to 24 areas Audio Compression G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2 Network Ethernet RJ-45 (10Base-T/100Base-TX) Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP,IP Filter,QoS,Bonjour,802.1x Interoperability ONVIF Profile S&G, API Streaming Method Unicast / Multicast Max. User Access 20 users Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS, DMSS Smart Phone IOS, Android Certifications Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 Special Note:This product is a pre-sale item. It will be shiparound 15 or more days after ordering. Please extend the delivery time.If you have any questions after receiving the goods, please contact us and we will give you a satisfactory result.If you need a model that we don't have in the store, you can also contact us. We are the agent of DAHUA and can quote the best price for you.After-sale:We offer a one-year warranty.
